Wire-Cutting EDM NP400L

NP400L (Submerged Type)

Max. work piece size

750 x 550 x 215 mm

Wire diameter

0.15 - 0.3 mm

Max. work piece weight

500 kg

Number of axes controlled

XY axis linear motor, UV Z axis AC servo motor

Table travel of X Y

400 x 300 mm

Maximum taper angle

±22°/ 80mm with wide diamond guide and nozzle

U & V axis travel

80 x 80 mm

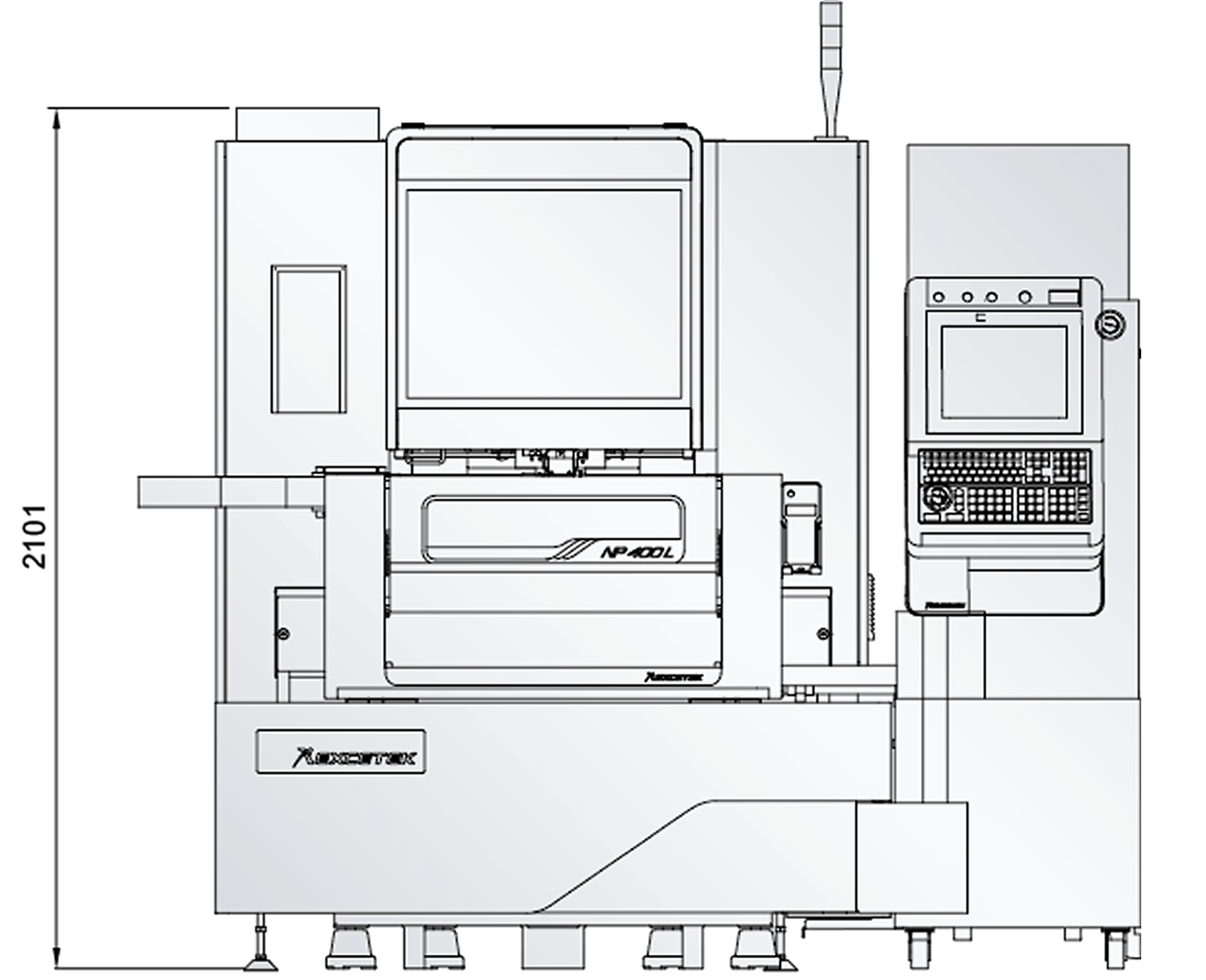

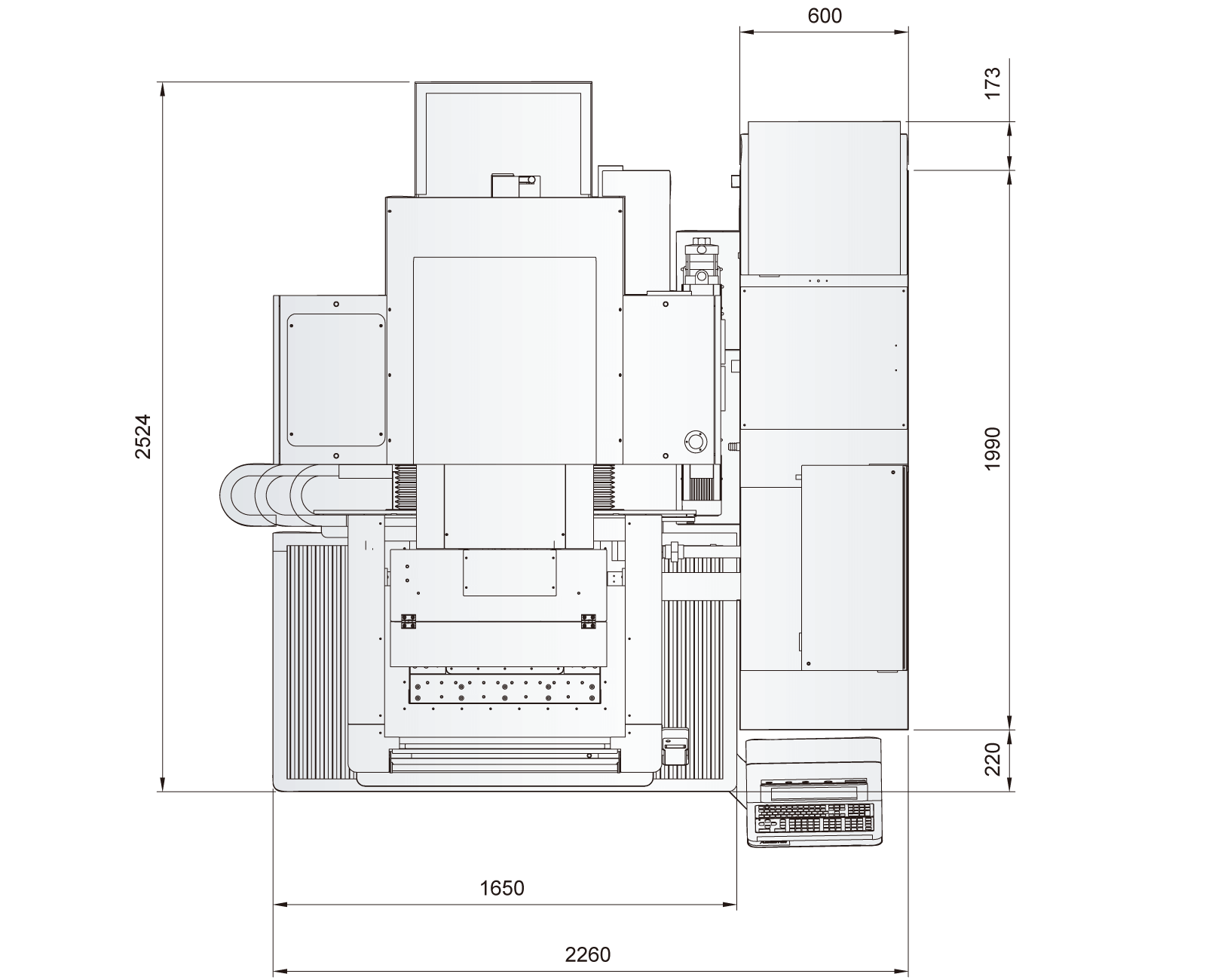

Machine dimensions

2260 x 2525 x 2100 mm

Z axis travel

220 mm

Machine weight

3050 kg

Dielectric Tank

Tank capacity

650 L

Deionzer

auto

Paper filter

2 / pcs

Chiller unit

auto

Features

Accessory

Standard Accessories

• XY axis linear scale
•
• Brass wire x 1 spool
• AWT
•
• Clamping tool x 1 set
• Ion exchange resin x 10L
•
• Vertical alignment jig x 1 set
• Paper filter x 2 pcs
•
• Diamond guide x 2 pcs
• Upper and lower flushing nozzle x 2 sets
•
• Energizing plates x 2 pcs

Options

• Clamping Beam
•
• W-Axis
• AVR 15KVA
•
• Jumbo Feeder L-50A
• Transformer 15KVA
•
• Short Message Service (SMS)
• Signal Tower
•
• Remote Monitor System
• Auto measurement system
•
• Super Finish Circuit
